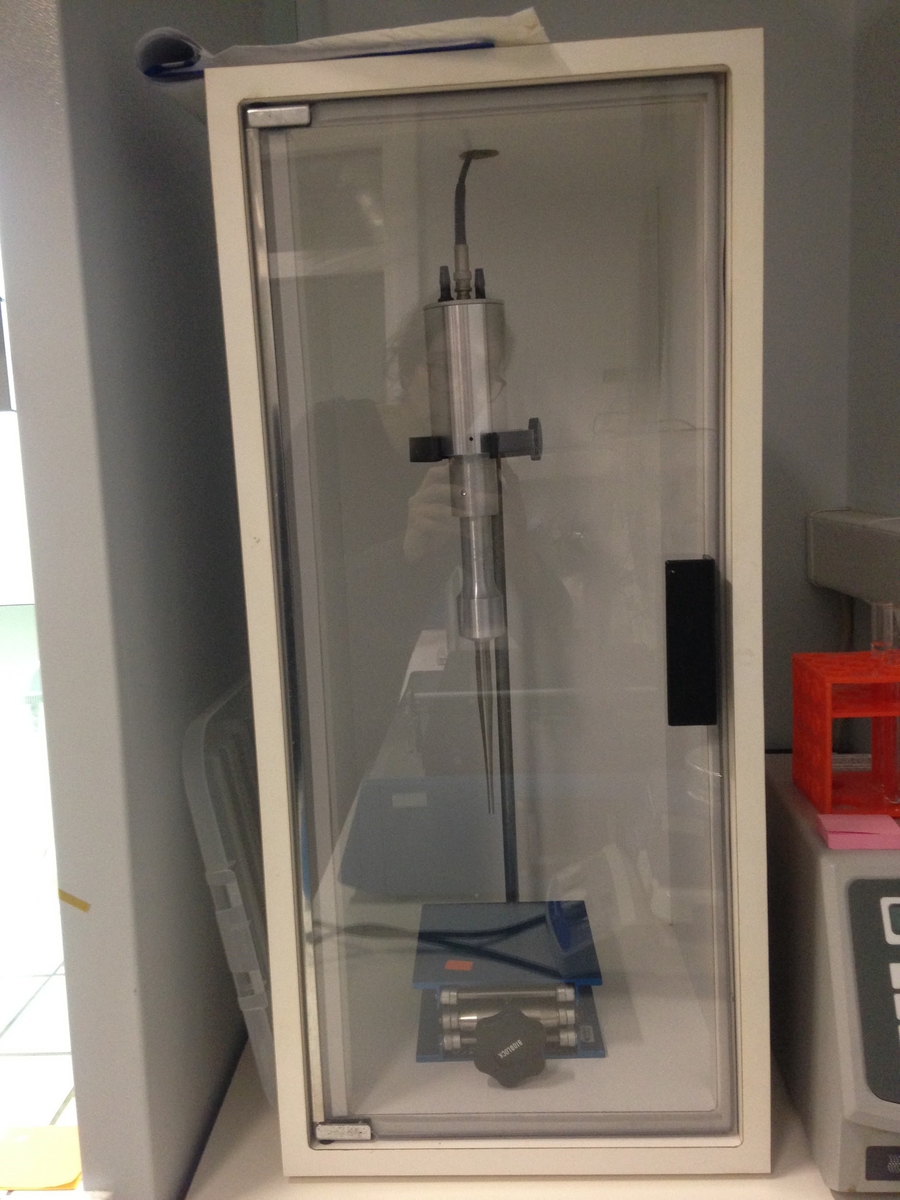

VCX 500 - Ultrasonic processor for small and medium volume applications

Location: Fun Paper Lab
Responsible: Cristina Gaspar

Description:
500 and 750 Watt Ultrasonic Processors to safely process a wide range of organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (producing nanoparticle materials and Graphene dispersions), cell lysing, sample preparation, homogenization, ChIP Assay, emulsification, disaggregation and deagglomeration, plus uses in the field of sonochemical processing.
●    Energy and temperature set-point control
●    Digital wattmeter
●    Automatic tuning
●    10 hour process timer
●    Independent On / Off pulser
●    Variable power output control
Specifications:
▪    Exclusive energy setpoint
▪    Wattmeter
▪    Automatic tuning and frequency control
▪    Microprocessor based and programmable
▪    Automatic amplitude compensation
▪    On demand real time display
▪    Variable power output control
▪    Ten hour process timer: process control from 1 second to 10 hours
▪    Elapsed time indicator
▪    Independent On/Off pulser: on and off cycles independently controlled from 1 second to 59 seconds
▪    User friendly
▪    Smallest footprint in its class (H x W x D): 235 x 190 x 340 mm
▪    Weight: 6.8 kg
▪    Standard probe:
o    Tip diameter: 13 mm with threaded end and replaceable tip or solid probe with non-replaceable tip
o    Processing capability: 50 mL to 250 mL
o    Length; 136 mm
o    Weight: 340 g
o    Titanium alloy Ti-6Al-4V
▪    Temperature probe (optional):
o    Allows sample temperature to be monitored up to 100° C
o    Stainless steel
▪    Tapered microtips:
o    630-0418
▪    Tip diameter: 3mm
▪    Intensity: ultra-high
▪    Volume (batch): 1-15 mL
▪    Maximum amplitude: 40%
o    630-0419
▪    Tip diameter: 5mm
▪    Intensity: very-high
▪    Volume (batch): 3-20 mL
▪    Maximum amplitude: 65%
