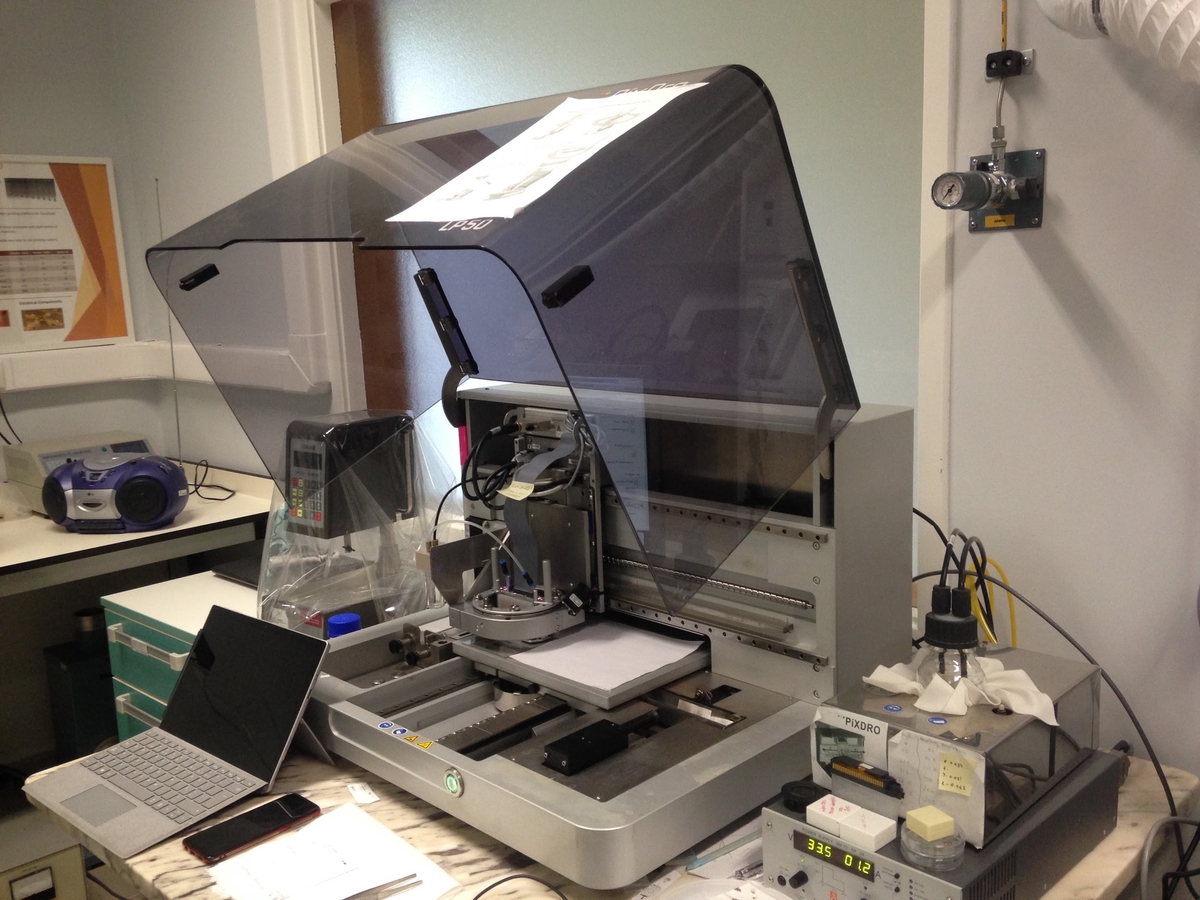

PiXDRO LP50

Location: Fun Paper Lab
Responsible: Cristina Gaspar

Description:
Advanced research inkjet printer. PiXDRO LP50 is designed for research and development of inkjet processes and applications.
The PixDRO LP50 is a desktop R&D inkjet printer for functional printing applications. It is designed for research and development of inkjet processes and applications, as well as evaluation and development of inkjet materials.
The PiXDRO LP50 platform is an open, accurate, flexible and easy-to-use system that will allow you to work at the cutting edge of inkjet printing technology. It is designed for a wide range of applications such as semiconductor packaging, PCBs, printed electronics, photovoltaics, displays and biomedical.

Specifications:
▪    Advanced Drop Analysis (ADA) for best ink jetting performance
▪    Automatic Print Optimization (APO) for best application results
▪    Substrate chuck cooling
▪    Dual printhead configuration
▪    Ink tank heating
▪    UV LED pinning and curing
▪    Laser source module
▪    Customized substrate holders
▪    Glovebox integration for inert environment
▪    JS20 printhead storage station
▪    Printer table with storage cabinet and monitor/keyboard swing arm
▪    Recirculating ink supply for nanoparticle inks
▪    Advanced Gerber File Rasterizer
▪    Maximum substrate size: 227 x 327 mm
▪    Maximum substrate thickness: 25 mm
▪    Substrate temperature control: Heating up to 90 °C (optional cooling down to 4 °C)
▪    Stage accuracy: +/- 20 μm (3σ)
▪    Stage precision: +/- 5 μm (3σ)
▪    Motion: X, Y, Z, Rotation of substrate table and printhead
▪    Print speed: Up to 500 mm/s
▪    Printheads: 16 - 2048 nozzles; 1 - 80 pL dropsize
▪    Ink types: Solvent based, nanoparticle, aqueous, hotmelt, UV-curable
▪    Ink viscosity: 2 - 20 cP
▪    Integrated post processing (optional): UV pinning or curing
▪    Footprint (W x D x H): Approx. 770 x 620 x 410 mm (excl. PC and monitor)
▪    Weight: Approx. 90 kg
Industrial printheads:
▪    Fujifilm Dimatix S-class, SE3/SX3, Sapphire, Emerald, Samba G3L, DMC
▪    Konica Minolta KM512, KM1024i
▪    XAAR 1003er series
▪    OCE CrystalPoint C29
