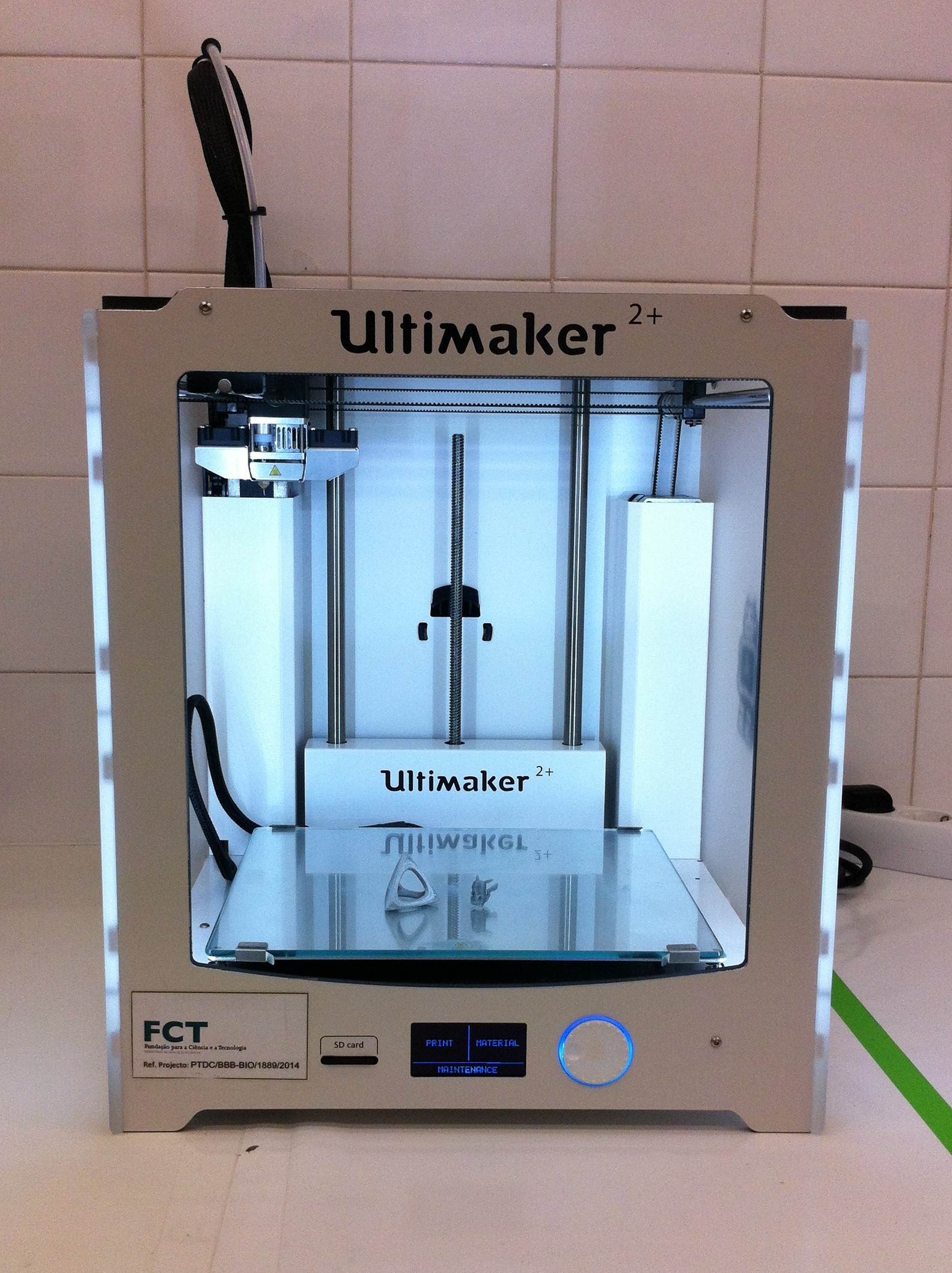

3D Printer - Ultimaker2+

Location: Lab 0.2



Description: The Ultimaker²⁺ is a multifunctional 3D printer. 3D printing industry applications range from aerospace design to health care. Ultimaker²⁺ 3D printer lets you create a physical object from a digital model layer by layer. The process for 3D printing includes the following steps: download or design a 3D model, convert the 3D model to a 3D print with Cura software and start the 3D print on the Ultimaker²⁺.



- Print Technology: fused filament fabrication (FFF)

- Print Head: swappable nozzle

- Filament Diameter: 2.85 mm

- Printer Size: 357 x 342 x 388 mm

- Build Volume: 223 x 223 x 205 mm

- Print Head Travel Speed: 30 to 300 mm/s

- Nozzle Diameter: 0.25, 0.40, 0.60 and 0.80 mm

- Layer Resolution: 0.25 mm nozzle – 150 to 60 micron, 0.40 mm nozzle – 200 to 20 micron, 0.60 mm nozzle – 400 to 20 micron, 0.80 mm nozzle – 600 to 20 micron

- Supported Material: PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95ª

- Nozzle Temperature: 180° to 260° C

- Build Plate Temperature: 50° to 100° C

- Connectivity: control panel with SD card

- Print Preparation: Cura – Official Ultimaker Software (free)

- Supported OS: Mac OS X, Windows, Linux

- Supported file types: STL, OBJ, DAE
