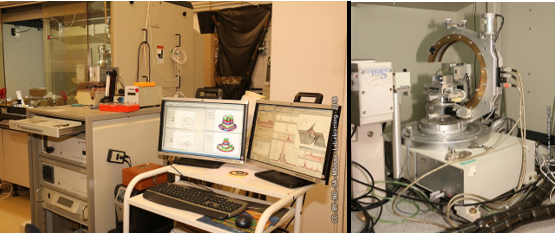

Rotating anode based diffractometer (Bruker)

Location: Lab 08 CENIMAT
Responsible: Braz Fernandes

Description:
The Bruker equipment combines a higher power source with texture/stress analysis and high/low temperature.
Specifications:
- a 18 kW generator,
- rotating anode Cu
- point and linear filaments
- horizontal right goniometer,
- graphite monochromator,
- scintillation detector,
- informatic system for the data acquisition and processing.
- cooling system,
- texture goniometer,
- furnace for – 150 < T < 450ºC under vacuum.
