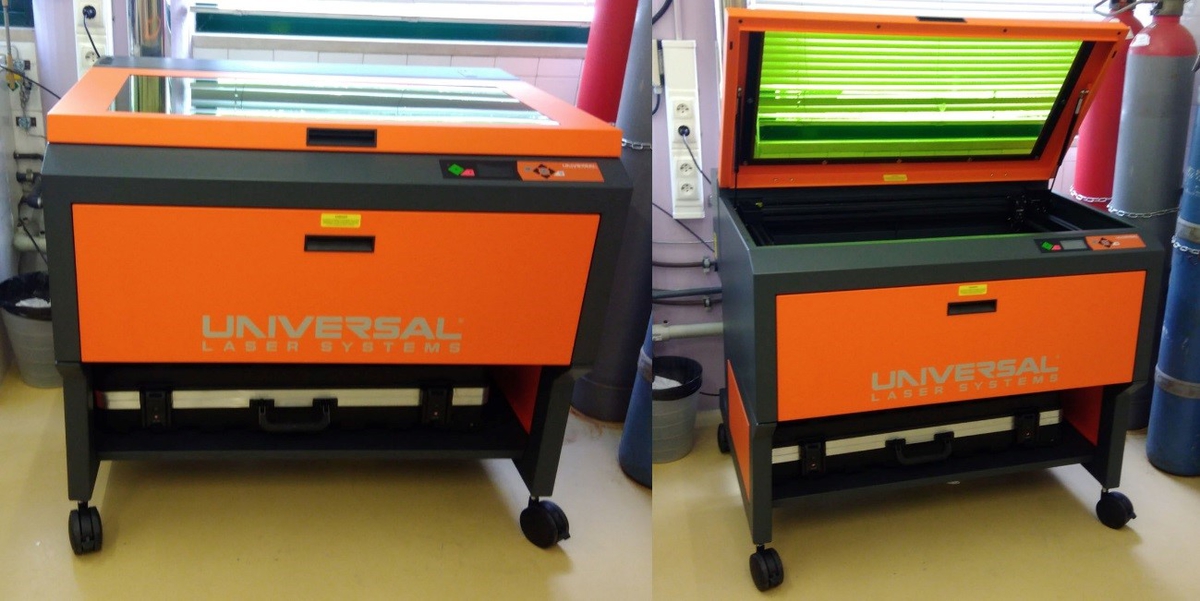

Laser System PLS6MW: Cutting and Engraving Machine

Location: Thin Film Lab
Responsible: Ana Carolina Marques

Description:
The PLS6MW (Multi-Wavelength) is a free-standing platform that uses multiple laser wavelengths to process the broadest possible spectrum of materials and supports either CO2 or fiber lasers.

Specifications:
-    Work area: 813 x 457 mm
-    Wavelengths: 10.6 µm (CO2 laser) and 1.06 µm (fiber laser)
-    Laser power: 60 W (CO2 laser) and 50 W (fiber laser)
-    Motorized Z axis lifting capacity: 18 kg
-    Available Lenses: 2.0 in (51 mm).
-    Multi-Material - Process an endless number of materials available today and in the future (acrylic; kapton; PEN; tetrapak; paper; glass and metal).
-    Multi-Process - Cut, engrave and mark
